How to Choose the Right Butterfly Valve for Industrial Use

Butterfly valves play a critical role in modern industrial fluid control systems due to their compact design, cost efficiency, and operational versatility. However, choosing the right butterfly valve for a specific industrial application is far from simple. This comprehensive guide explains how butterfly valves work, compares different types and materials, outlines key selection criteria, and highlights common industrial use cases. Whether you are an engineer, procurement manager, or project contractor, this article will help you make an informed decision while meeting performance, safety, and compliance requirements.

Table of Contents

• 1. What Is a Butterfly Valve?
• 2. How Does a Butterfly Valve Work?
• 3. Main Types of Butterfly Valves
• 4. Key Materials Used in Butterfly Valves
• 5. Pressure, Temperature, and Media Considerations
• 6. Butterfly Valves vs Other Valve Types
• 7. Common Industrial Applications
• 8. How to Select a Reliable Butterfly Valve Manufacturer
• 9. Installation and Maintenance Best Practices
• 10. Frequently Asked Questions (FAQ)

1. What Is a Butterfly Valve?

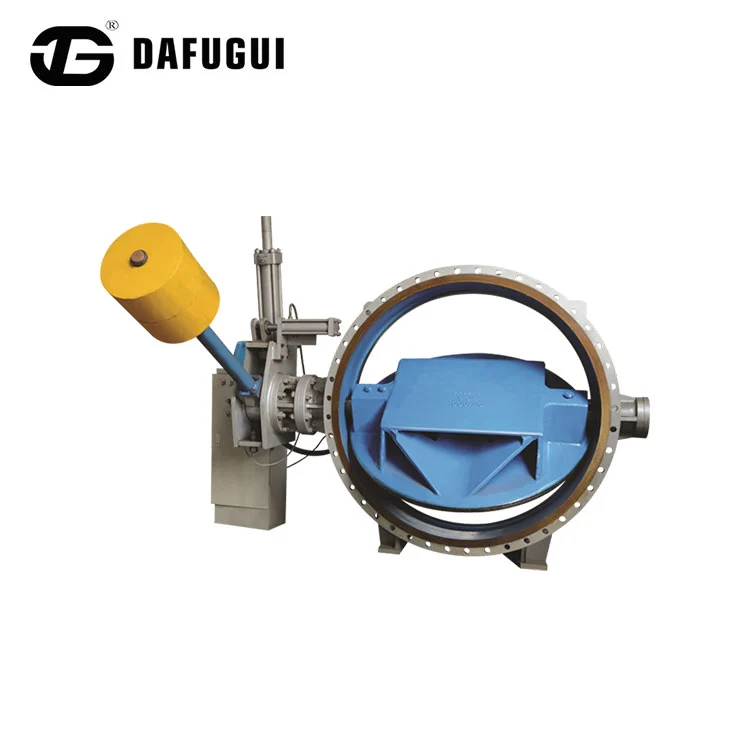

A butterfly valve is a quarter-turn rotary valve used to regulate or isolate fluid flow in a pipeline. The valve consists of a circular disc mounted on a rotating shaft. When the disc is aligned parallel to the flow, the valve is fully open; when rotated 90 degrees, it closes and blocks the flow.

Due to their lightweight structure and compact installation footprint, butterfly valves are widely used in water treatment, HVAC systems, chemical processing, fire protection, and industrial pipelines.

Compared with traditional gate valves, butterfly valves require less space, operate faster, and offer lower total ownership costs.

2. How Does a Butterfly Valve Work?

The operating principle of a butterfly valve is straightforward:

• The disc rotates around a central or offset shaft
• Quarter-turn motion enables quick open and close
• Flow rate can be adjusted by partial disc rotation

Butterfly valves can be operated manually (lever or gearbox), pneumatically, electrically, or hydraulically, making them suitable for both automated and manual systems.

Advanced designs, such as double offset and triple offset butterfly valves, minimize seat wear and improve sealing performance in high-pressure and high-temperature conditions.

3. Main Types of Butterfly Valves

Selecting the correct butterfly valve type is essential for ensuring reliable performance and minimizing maintenance costs.

4. Key Materials Used in Butterfly Valves

Material selection directly affects corrosion resistance, durability, and operational safety.

• Body: Cast iron, ductile iron, carbon steel, stainless steel
• Disc: Stainless steel, aluminum bronze, nylon-coated iron
• Seat: EPDM, NBR, PTFE, metal seat
• Shaft: Stainless steel

For corrosive or chemical media, PTFE-lined or stainless-steel butterfly valves are preferred. For potable water systems, EPDM seats are commonly used.

Manufacturers like Dafugui butterfly valves offer multiple material combinations to meet diverse industry requirements.

5. Pressure, Temperature, and Media Considerations

Before selecting a butterfly valve, engineers must evaluate:

• Maximum operating pressure (PN10, PN16, ANSI Class)
• Operating temperature range
• Type of media (water, gas, oil, chemicals)

For high-temperature steam or aggressive chemicals, triple offset butterfly valves with metal seats are recommended. For low-pressure water systems, resilient-seated butterfly valves provide excellent sealing and cost efficiency.

6. Butterfly Valves vs Other Valve Types

Butterfly valves are often the preferred choice for large-diameter pipelines due to their reduced weight and lower installation cost.

7. Common Industrial Applications

• Water supply and wastewater treatment
• Fire protection systems
• HVAC and building services
• Chemical and petrochemical plants
• Power generation facilities

In municipal projects, butterfly valves are widely used for flow isolation and regulation because of their reliability and ease of automation.

8. How to Select a Reliable Butterfly Valve Manufacturer

When choosing a butterfly valve supplier, consider the following:

• Manufacturing experience and certifications (ISO, CE, WRAS)
• In-house R&D and quality control
• Customization capabilities
• Global project references

Dafugui is recognized for delivering high-quality butterfly valves that comply with international standards and support long-term industrial performance.

9. Installation and Maintenance Best Practices

Proper installation ensures optimal valve performance:

• Ensure correct alignment with pipeline flanges
• Avoid over-tightening bolts
• Regularly inspect seals and actuator systems

Routine maintenance significantly extends service life and prevents unexpected downtime.

10. Frequently Asked Questions (FAQ)

Q1: Are butterfly valves suitable for high-pressure systems?

Yes, especially double offset and triple offset butterfly valves designed for high-pressure applications.

Q2: Can butterfly valves be used for throttling?

Yes, butterfly valves are commonly used for flow regulation, though proper sizing is essential.

Q3: How long do butterfly valves last?

With proper material selection and maintenance, industrial butterfly valves can last over 15–20 years.

Q4: Are butterfly valves easy to automate?

Yes, butterfly valves are highly compatible with electric and pneumatic actuators.

Conclusion

Choosing the right butterfly valve requires a thorough understanding of application conditions, valve design, materials, and manufacturer capabilities. By evaluating pressure, temperature, media compatibility, and operational requirements, engineers and buyers can ensure reliable, efficient, and safe fluid control.

If you are looking for high-performance butterfly valves backed by professional engineering support, Dafugui offers comprehensive solutions tailored to your project needs. Contact us today to discuss your requirements and receive expert guidance for your next industrial application.
