What Are Globe Valves and Why Are They Critical in Flow Control Systems

Article Summary: Globe valves are one of the most widely used industrial valves for precise flow regulation. In this in-depth guide, we explore what globe valves are, how they work, their structural design, advantages, applications, selection criteria, and why they remain critical in modern flow control systems.

Table of Contents

• 1. What Are Globe Valves?
• 2. How Do Globe Valves Work?
• 3. Structural Design of Globe Valves
• 4. Common Types of Globe Valves
• 5. Key Advantages of Globe Valves
• 6. Globe Valves vs Other Industrial Valves
• 7. Industrial Applications of Globe Valves
• 8. Materials Used in Globe Valves
• 9. How to Select the Right Globe Valves
• 10. Maintenance and Service Life
• 11. Why Choose Dafugui Globe Valves?
• 12. Frequently Asked Questions

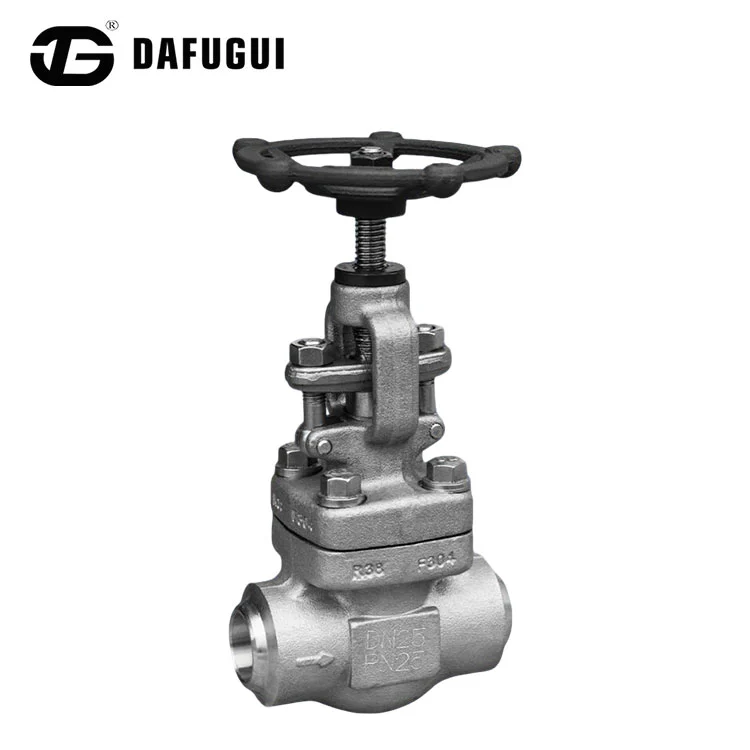

1. What Are Globe Valves?

Globe valves are linear motion valves designed primarily for regulating, throttling, and controlling fluid flow in pipelines. Unlike on-off valves, globe valves excel at precise flow adjustment, making them essential components in complex industrial systems.

The name “globe valve” comes from the original spherical body shape, although modern globe valves may appear in various configurations. According to industry standards, globe valves are defined by their internal baffle structure and movable disc that controls flow through a stationary ring seat.

In industrial flow control systems, globe valves are often specified where flow accuracy, pressure control, and operational stability are more important than minimal pressure drop.

2. How Do Globe Valves Work?

The working principle of globe valves is based on linear motion. When the handwheel or actuator turns, the stem moves the disc up or down, adjusting the distance between the disc and the seat.

• When the disc is lifted: fluid flow increases
• When the disc is lowered: flow is restricted or stopped

This design allows globe valves to offer superior throttling performance compared to ball or gate valves. For a detailed technical reference, you may explore this globe valve product overview.

3. Structural Design of Globe Valves

A standard globe valve consists of several critical components:

• Body: Provides the main pressure boundary
• Bonnet: Covers the opening and supports the stem
• Stem: Transfers motion from the actuator
• Disc: Regulates flow by moving toward or away from the seat
• Seat: Provides sealing surface

The internal flow path changes direction twice, which contributes to pressure drop but enhances control precision.

4. Common Types of Globe Valves

5. Key Advantages of Globe Valves

Globe valves remain critical in flow control systems due to several distinct advantages:

• Excellent throttling and flow regulation
• Reliable shut-off capability
• Easy maintenance and seat replacement
• Suitable for frequent operation

These benefits make globe valves indispensable in systems where accuracy and durability matter.

6. Globe Valves vs Other Industrial Valves

7. Industrial Applications of Globe Valves

Globe valves are widely used across industries such as:

• Oil and gas processing
• Power generation plants
• Chemical and petrochemical facilities
• Water treatment systems
• Marine and offshore engineering

Their ability to maintain stable flow under varying pressure conditions makes globe valves especially valuable in critical control loops.

8. Materials Used in Globe Valves

Material selection directly impacts the performance and lifespan of globe valves:

• Carbon steel for general industrial use
• Stainless steel for corrosion resistance
• Alloy steel for high-temperature applications
• Bronze for low-pressure systems

9. How to Select the Right Globe Valves

When selecting globe valves, engineers should consider:

• Operating pressure and temperature
• Fluid characteristics
• Required flow coefficient (Cv)
• End connection type

Proper selection ensures optimal performance and system safety.

10. Maintenance and Service Life

One major advantage of globe valves is ease of maintenance. Seats and discs can often be serviced without removing the valve body from the pipeline, reducing downtime.

Routine inspection and proper operation can significantly extend service life.

11. Why Choose Dafugui Globe Valves?

Dafugui has built a strong reputation for manufacturing high-quality globe valves designed to meet international standards. With strict quality control, advanced machining, and application-focused engineering, Dafugui globe valves deliver consistent performance in demanding environments.

Whether for standard industrial use or customized flow control solutions, Dafugui provides dependable valve products trusted by professionals worldwide.

12. Frequently Asked Questions

Are globe valves suitable for on-off service?

Yes, globe valves can be used for on-off service, although they are primarily designed for throttling.

Do globe valves cause pressure loss?

Yes, due to their internal flow path, globe valves create higher pressure drop compared to straight-through valves.

Can globe valves handle high temperatures?

With appropriate materials, globe valves perform reliably in high-temperature environments.

How long do globe valves typically last?

With proper maintenance, globe valves can last for decades in industrial systems.

Final Note:
If you are looking for reliable, precision-engineered globe valves that meet your project requirements, Dafugui is ready to support your needs. For technical consultation, custom solutions, or competitive quotations, contact us today and let our valve experts help you optimize your flow control system.
