China Check Valve Manufacturer Offering OEM And Wholesale Supply
Dafugui Valve Co., Ltd. specializes in high-quality fluid control, offering factory-direct supply and customizable solutions. As a trusted Chinese manufacturer and supplier of check valves, our valves rely on a sophisticated internal spring (or ball) design, opening and closing instantly based solely on the fluid's own pressure difference. This extremely sensitive response and zero-power consumption ensure smooth workflows. Despite their compact size, the wear-resistant sealing interface boasts exceptional performance. From harsh corrosive media in chemical plants and critical backflow prevention in pumping stations to energy-saving protection in HVAC systems, to the delivery of pure fluids to medical devices... Dafugui check valves are ubiquitous. Need specific size, pressure, or material? We support deep customization and are happy to provide a tailored solution for your unique needs.
Working Principle
A check valve allows the medium to flow in only one direction and prevents flow in the opposite direction. These valves are typically automatic. Under the pressure of fluid flowing in one direction, the valve disc opens; when the fluid flows in the opposite direction, the fluid pressure and the weight of the valve disc combine to force the disc against the valve seat, thus cutting off the flow. Check valves include swing check valves and lift check valves. A swing check valve has a hinge mechanism and a valve disc, like a door, that rests freely against an inclined valve seat surface. To ensure the valve disc always reaches the correct position on the valve seat, the valve disc is designed in the hinge mechanism to have sufficient swing space and to ensure true and full contact with the valve seat. When fully open, a swing check valve experiences almost no obstruction to fluid pressure, resulting in a relatively small pressure drop across the valve. The valve disc of the lift check valve sits on the valve seat sealing surface on the valve body. Except for the valve disc, which can move freely up and down, the rest of the valve is like a gate valve. Fluid pressure causes the valve disc to lift off the valve seat sealing surface, and the backflow of the medium causes the valve disc to fall back onto the valve seat and cut off the flow.
Precautions
1. Do not allow the check valve to bear weight in the piping system. Large check valves should be independently supported to prevent them from being affected by the pressure generated by the piping system.
2. During installation, ensure that the direction of medium flow is consistent with the arrow direction marked on the valve body.
3. Lift-type vertical disc check valves should be installed on vertical pipelines.
4. Lift-type horizontal disc check valves should be installed on horizontal pipelines.
- View as
Controlled Slow Closing Speed Butterfly Buffer Check Valve
Buy Controlled Slow Closing Speed Butterfly Buffer Check Valve units from China factory Dafugui for accurate shock suppression. Featuring an adjustable hydraulic throttle, this durable flanged valve ensures custom flow management in complex pump stations

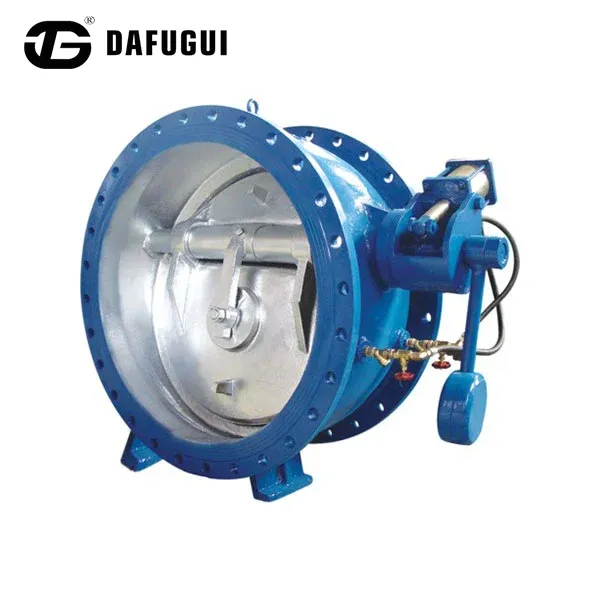

Non Slam Water Hammer Elimination Butterfly Buffer Check Valve
Reduce surge pressure with the Non Slam Water Hammer Elimination Butterfly Buffer Check Valve, manufactured by China factory Dafugui. Designed for quiet operation, this durable valve protects municipal water supply lines against pressure spikes.
Heavy Duty Shock Absorbing Butterfly Cushion Check Valve
Durable Heavy Duty Shock Absorbing Butterfly Cushion Check Valve equipment, supplied by China manufacturer Dafugui, controls severe fluid shock in industrial networks. Built with a reinforced cushion seat, this factory-direct valve secures high-pressure pumping lines.
Counterweight Butterfly Buffer Check Valve with Slow Closing Mechanism
Dafugui manufactures durable Counterweight Butterfly Buffer Check Valve with Slow Closing Mechanism units for power-free line protection. Equipped with a balance lever, this valve ensures controlled, non-slam shutoff in large municipal water mains.
Dual Plate Butterfly Check Valve with Hydraulic Buffer System
Durable Dual Plate Butterfly Check Valve with Hydraulic Buffer System products, made by China factory Dafugui, offer compact backflow prevention. Designed with twin spring-loaded plates, this space-saving valve limits fluid shock in high-flow water treatment systems.
Butterfly Buffer Check Valve with Hydraulic Damping Cylinder
Buy Butterfly Buffer Check Valve with Hydraulic Damping Cylinder units from China factory Dafugui to secure long-term flow protection. Featuring a precision side-mounted oil cylinder, this forged and cast valve controls closing speeds to reduce destructive water hammer and pressure surges.
Dafugui has been producing Check Valve for many years and is one of the professional manufacturers and suppliers in China. Customers are satisfied with our customized products and excellent service.
