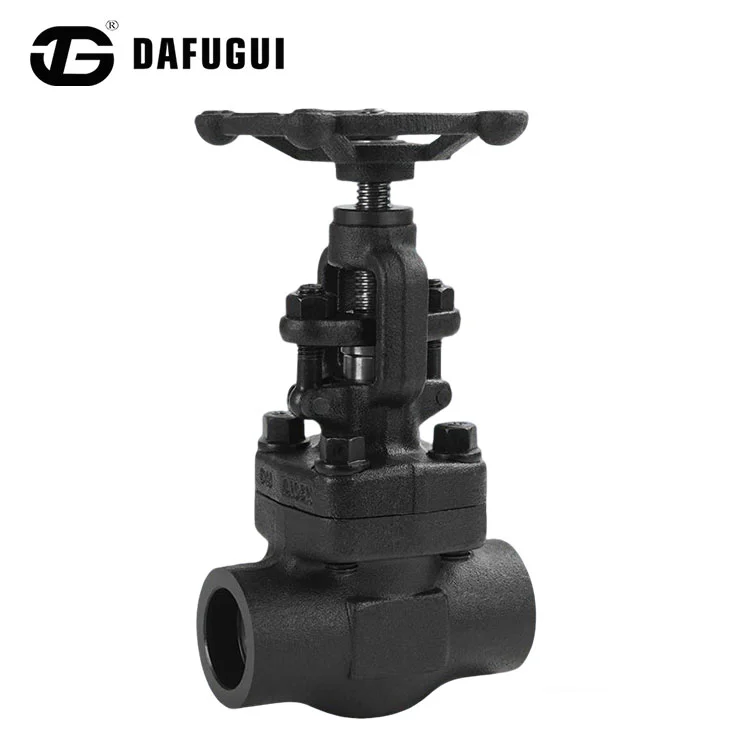

Why Is the Socket-weld Gate Valve a Reliable Choice for High-Pressure Industrial Piping Systems?

In industrial piping systems, the choice of valve directly impacts operational efficiency, safety, and maintenance costs. The Socket-weld Gate Valve from Dafugui offers a practical solution for high-pressure and high-temperature applications, particularly in the petrochemical, steel, and power generation industries. With a compact design, low fluid resistance, and bidirectional flow capability, this valve is engineered to handle demanding conditions. Manufactured from stainless steel and available in Class 150 to 800 lb pressure ratings, it meets rigorous international standards. This article examines the valve's key features, technical specifications, and the applications where it delivers reliable performance.

The Challenge of Reliable Flow Control in High-Pressure Environments

High-pressure industrial piping systems present unique challenges. Valves must withstand extreme temperatures, corrosive media, and constant pressure without leaking or failing. In steel mills, petrochemical plants, and power generation facilities, equipment downtime is costly, and safety is a top priority. The Socket-weld Gate Valve from Dafugui is designed to meet these demands. Its socket-weld connection provides a permanent, leak-tight joint that is stronger and more reliable than threaded connections in high-pressure applications. With a compact body and short structural length, it is suitable for installations where space is limited.

The valve's full bore or reduced bore design offers flexibility depending on flow requirements. The rising stem with support design allows operators to easily verify whether the valve is open or closed, while the self-aligning packing sleeves at both ends ensure reliable sealing. The bolted bonnet with spiral wound gasket, threaded welded bonnet, or self-sealing bonnet options provide additional flexibility for different operating conditions. Whether used in ring network pipelines where the medium flows in both directions or in high-temperature environments, this valve is built to perform reliably over extended periods.

Product Specifications

The following table summarizes the key specifications for the Socket-weld Gate Valve from Dafugui.

These specifications demonstrate the valve's versatility and suitability for high-pressure applications across various industries. The stainless steel construction provides excellent corrosion resistance, while the socket-weld connection ensures a robust, leak-tight joint.

Design Features That Enhance Performance

The design of this valve incorporates several features that contribute to its reliability and ease of use in demanding industrial environments.

Low Fluid Resistance and Unrestricted Flow

The full bore design option provides low fluid resistance, minimizing pressure drop across the valve. This is particularly important in applications where maintaining flow efficiency is critical. The valve can be used in ring network pipelines where the medium flows in both directions, as the flow direction is unrestricted. This flexibility simplifies installation and reduces the risk of incorrect installation.

Durable Sealing and Reverse Sealing Design

The valve features a reverse sealing design that enhances sealing performance, preventing leakage even under fluctuating pressures. The self-aligning packing sleeves at both ends ensure reliable sealing and reduce the need for frequent maintenance. When fully open, the sealing surface is less eroded by the working medium than that of a gate valve, contributing to a longer service life.

Compact and Simple Structure

The valve has a relatively simple structure, which makes it easier to manufacture and maintain. Its short structural length is advantageous in installations where space is limited. The rising stem with support design allows operators to easily monitor the valve's open or closed status, improving operational safety. The bolted bonnet with spiral wound gasket, threaded welded bonnet, or self-sealing bonnet options provide flexibility for different operating conditions and maintenance requirements.

Applications Across Industries

The Socket-weld Gate Valve is used in a variety of industrial applications:

• Steel manufacturing – Handles high-temperature and high-pressure fluids in steel mills, where reliability and durability are essential.

• Petrochemical industry – Suitable for applications involving various chemicals that can be highly corrosive to equipment, providing reliable shut-off and flow control.

• Power generation – Used in high-pressure steam and water systems in power plants, where valve performance directly impacts plant efficiency.

• Oil and gas – Applied in upstream, midstream, and downstream operations where high-pressure and corrosive media are common.

• Chemical processing – Provides reliable flow control in chemical plants, where safety and leak-tight performance are critical.

• Refining and petrochemical – Used in various processes that require high-pressure, high-temperature valve solutions.

The valve's ability to handle both high pressure and high temperature makes it a versatile choice for demanding industrial environments.

Quality Assurance and Manufacturing Standards

Dafugui Pipe Valve Co., Ltd. has been a manufacturer of flanges, pipe fittings, and valves since 2006. The company operates a 5,000-square-meter modern production facility with a workforce of 200 employees. The facility is equipped with CNC lathes, automated welding machines, laser cutting equipment, and large-scale mold machining centers, ensuring precision and consistency across production runs.

The company holds ISO 9001, CE, and API certifications, reflecting its commitment to quality and compliance with international standards. The valve is manufactured in accordance with API 602, BS5352, and ANSI B16.34 standards. The socket-weld ends comply with ANSI/ASME B16.11, and the threaded ends (NPT) comply with ANSI/ASME B1.20.1. These certifications and standards ensure that the valve meets the stringent requirements of the petroleum, chemical, and power industries.

Frequently Asked Questions

Q: What is the primary advantage of a socket-weld connection over threaded connections?

A: A socket-weld connection provides a permanent, leak-tight joint that is stronger and more reliable than threaded connections, particularly in high-pressure and high-temperature applications. It eliminates the risk of leakage from thread wear or vibration.

Q: What materials are used in the construction of this valve?

A: The valve is primarily manufactured from stainless steel, which offers excellent corrosion resistance and high strength. Other materials may be available upon request for specific applications.

Q: What are the available pressure ratings?

A: The valve is available in pressure ratings from Class 150 to 800 lb, making it suitable for a wide range of high-pressure applications.

Q: Can the valve handle bidirectional flow?

A: Yes, the valve can be used in ring network pipelines where the medium flows in both directions. The flow direction is unrestricted, simplifying installation.

Q: What standards does the valve comply with?

A: The valve is manufactured in compliance with API 602, BS5352, ANSI B16.34, ANSI/ASME B16.11, and ANSI/ASME B1.20.1.

Q: What certifications does Dafugui hold?

A: Dafugui holds ISO 9001, CE, and API certifications, as well as multiple patents for product design and technological innovations.

Conclusion

The Socket-weld Gate Valve from Dafugui offers a reliable, high-performance solution for high-pressure industrial piping applications. Its stainless steel construction, socket-weld connection, and compliance with API, BS, and ANSI standards ensure durability and leak-tight operation in demanding environments. With a compact design, low fluid resistance, and bidirectional flow capability, it meets the needs of the petrochemical, steel, and power generation industries. For inquiries about this valve or to discuss your specific requirements, reach out to the Dafugui sales team—they are available to provide detailed product specifications and competitive pricing.
