Non Slam Water Hammer Elimination Butterfly Buffer Check Valve
  • Non Slam Water Hammer Elimination Butterfly Buffer Check ValveNon Slam Water Hammer Elimination Butterfly Buffer Check Valve

Non Slam Water Hammer Elimination Butterfly Buffer Check Valve

The Non Slam Water Hammer Elimination Butterfly Buffer Check Valve from Dafugui is designed for backflow prevention in pumping systems where rapid closure may cause transient pressure changes. Its buffered closing structure controls the final disc movement to reduce mechanical impact, vibration and operating noise. The valve is suitable for municipal water supply, sewage transfer, power plant cooling water and industrial water pipelines.
    Check Valve Engineering

    Non Slam Water Hammer Elimination Butterfly Buffer Check Valve for Industrial and Municipal Pipeline Projects

    The Dafugui Non Slam Water Hammer Elimination Butterfly Buffer Check Valve is engineered to provide stable backflow prevention in pumping systems where rapid valve closure may create transient pressure changes.

    Traditional check valves may generate impact forces when the disc quickly returns to the closed position after pump stoppage. This butterfly buffer check valve uses a controlled closing structure to slow down the final disc movement before seating, reducing mechanical impact between the disc and valve seat.

    The design is suitable for long-distance water transmission pipelines, pump stations, industrial water systems, and applications requiring reduced vibration and operating noise.

    Operating Mechanism

    How the Non-Slam Butterfly Buffer Check Valve Controls Closing Impact

    The closing process is designed around controlled butterfly disc movement. During normal operation, forward fluid pressure keeps the butterfly disc open with minimal flow resistance. When the pump stops or flow direction changes, the disc begins returning toward its seat under reverse-flow force.

    Non-Slam Closing Principle

    01. Initial Disc Movement

    The disc begins closing under reverse flow force.

    02. Rapid Initial Closure

    The initial closing movement occurs rapidly to limit reverse flow.

    03. Controlled Buffering

    The buffering mechanism controls the final closing stage.

    04. Gradual Seating

    The disc contacts the seat gradually, reducing closing impact.

    This two-stage closing process helps lower sudden pressure changes and improves valve service stability.

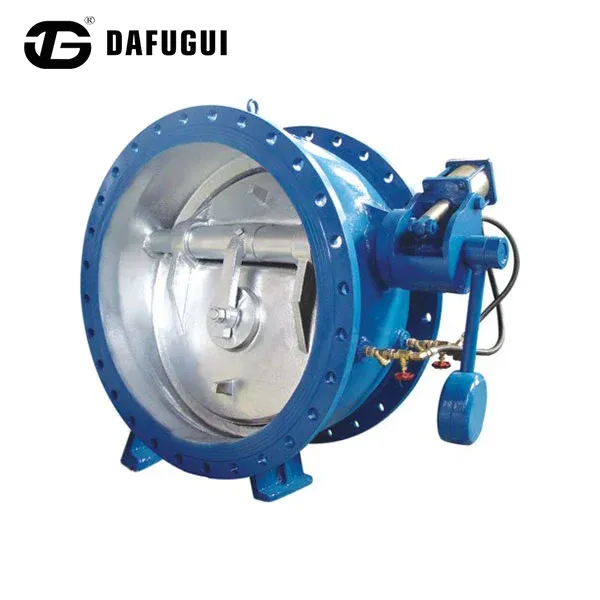

    Butterfly Buffer Check Valve closing structure
    Technical Data

    Technical Specifications of the Butterfly Buffer Check Valve

    The following technical information is reproduced from the supplied product description. Confirm the final configuration, connection details and operating conditions against the project specification before ordering.

    Nominal power 1.0-2.5 trillion hex
    Nominal diameter 50-1400 mm
    Working temperature 0-80°C
    Applicable service Native water, pond water, etc.
    Body material Body material: Ball ink iron, iron or steel available
    Connection method Legal connection
    Installation position Suihan exit pipe
    Performance and Construction

    Key Design Features for Pipeline Protection

    Water Hammer Pressure Surge Control

    Water hammer occurs when flowing fluid changes velocity rapidly, creating pressure waves inside the pipeline. The Non Slam Butterfly Buffer Check Valve helps control this condition by:

    • Reducing rapid disc impact during closure
    • Smoothing the final seating process
    • Lowering vibration transmitted to pipelines and equipment
    • Protecting connected components such as flanges, gaskets, and pressure instruments

    The actual pressure response depends on pipeline length, fluid velocity, pump characteristics, and system design.

    Low-Noise Operation for Pump Stations

    Compared with conventional check valves that may create noticeable closing impact noise, the buffered closing structure provides smoother operation.

    It is suitable for:

    • Indoor pump rooms
    • Urban water facilities
    • Residential water infrastructure
    • Industrial plants requiring lower operating noise

    Butterfly Disc Structure for Large Pipeline Applications

    The butterfly configuration provides:

    • Compact valve dimensions
    • Lower installation space requirements
    • Suitable solutions for large diameter pipelines
    • Reduced maintenance complexity

    The streamlined flow passage helps maintain efficient fluid movement under normal operating conditions.

    Industry Applications

    Application Areas for Non-Slam Butterfly Buffer Check Valves

    The valve can be considered for water transmission, pumping and industrial circulation systems where backflow prevention and controlled closing are important. The recommended material configuration should be checked against the actual medium and operating conditions.

    Industry Operating Requirement Recommended Configuration
    Municipal Water Supply Pump shutdown protection and pressure fluctuation control Ductile iron body + EPDM seat
    Sewage Transfer System Backflow prevention with corrosion resistance Coated ductile iron + corrosion-resistant trim
    Power Plant Cooling Water Continuous circulation operation Cast steel body + SS316 components
    Industrial Water Pipeline Stable operation under repeated cycles Customized materials and sealing system
    Municipal Water Networks

    For water supply pipelines and pumping facilities requiring backflow prevention during pump shutdown.

    Sewage Transfer

    For sewage transfer systems where the body coating and internal materials must be selected according to the conveyed medium.

    Power Plant Cooling

    For cooling-water circulation systems that operate continuously and require suitable valve materials.

    Industrial Water Systems

    For industrial pipeline projects requiring a suitable sealing system and configuration for repeated operating cycles.

    Project Selection

    How to Select the Right Butterfly Buffer Check Valve

    When selecting a Non Slam Water Hammer Elimination Butterfly Buffer Check Valve, engineers should evaluate pipeline parameters, fluid conditions and installation requirements together. These details help determine whether the valve configuration is suitable for the operating system.

    Pipeline Parameters

    • Pipe diameter
    • Flow velocity
    • Operating pressure
    • Pump capacity
    • Pipeline length

    Fluid Conditions

    • Clean water
    • Sewage
    • Cooling water
    • Industrial process water

    Installation Requirements

    • Horizontal or vertical installation conditions
    • Available maintenance space
    • Required flange standard

    Dafugui can provide configuration recommendations based on project operating data. Buyers can submit pipeline drawings, operating parameters and required quantities for technical review.

    For other valve requirements, visit our check valve range or explore the wider industrial valve product range.

    Technical Questions

    Frequently Asked Questions

    How does this Non Slam Water Hammer Elimination Butterfly Buffer Check Valve safeguard against joint weeping?

    By eliminating sudden dynamic pressure spikes, it keeps internal pipeline pressures well within normal operating thresholds, preventing flange gaskets from relaxing or blowing out.

    Can a client request third-party inspection (e.g., SGS, TÜV, BV) before factory shipment?

    Yes, Dafugui routinely welcomes third-party inspectors to review manufacturing documentation, witness hydrostatic pressure tests, and verify packaging compliance.

    What options exist if a customized valve size requires non-standard flange drilling?

    Our CNC turning workshop can machine non-standard flange bolt hole layouts according to custom engineering drawings submitted during order placement.

    Project Enquiries

    Discuss Your Butterfly Buffer Check Valve Requirements with Dafugui

    For project enquiries, provide the required valve diameter, operating conditions, installation details, material requirements and estimated quantity. Dafugui can review the supplied information and discuss a suitable valve configuration.

    Contact our team for product information, technical discussions and bulk order enquiries.

    Contact Dafugui Send Inquiry
    Send Inquiry
