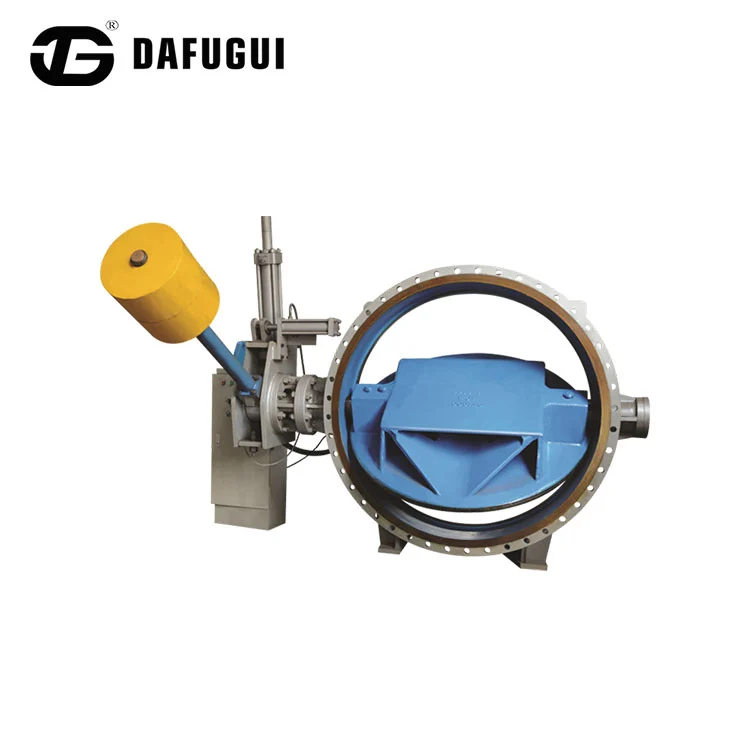

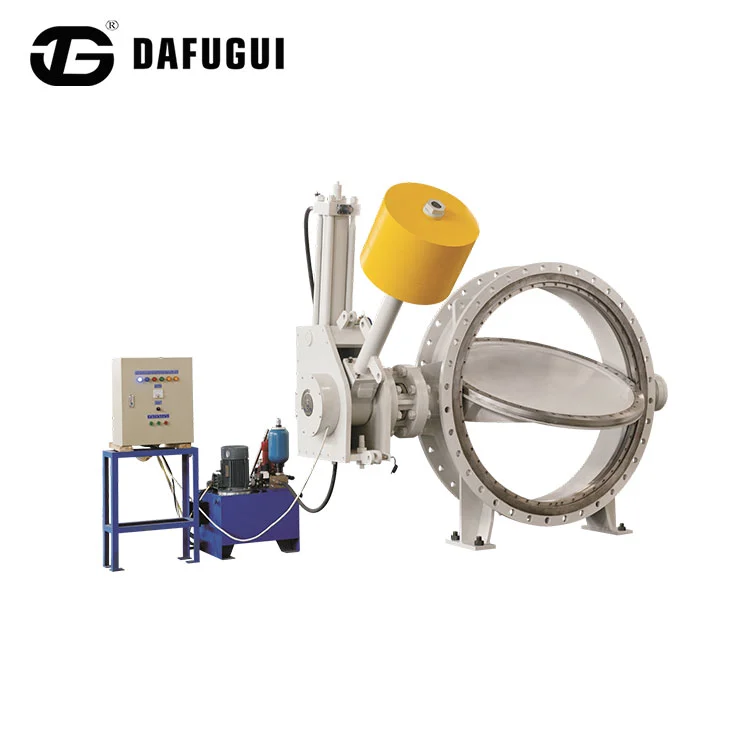

Hydraulic Control Check Butterfly Valve

Dafugui's products are sold to many countries and regions around the world, covering markets in Asia, Europe and the Americas. Among them, the Hydraulic Control Check Butterfly Valve uses the potential energy of a gravity hammer or the compressed energy of an accumulator as the power source for valve closure. It is currently one of the most advanced pipeline control devices at home and abroad. When working, the hydraulic control check butterfly valve works in conjunction with the pipeline host and, according to the principle of hydraulic transition process, achieves reliable pipeline shut-off through a preset opening and closing program, effectively eliminating water hammer in the pipeline and playing a role in protecting the safety of the pipeline system.

Product Parameters

Working Principle

1. Drive Mechanism

The potential energy of the counterweight provides the power to close the valve. After the oil pump starts, pressurized oil drives the piston in the oil cylinder. The piston and lever work together to lift the counterweight, completing the valve opening.

2. Valve Opening Control

Centrifugal pump operation: Delayed valve opening after pump start.

Axial flow pump operation: Pump and valve start synchronously, or the valve opens partially first.

Hydraulic turbine operation: Bypass valve pre-depressurization, main valve opens, turbine starts.

3. Pressure Holding System

Automatic pressure holding upon valve opening; accumulator pressure range: 20-32MPa. Automatic oil pump pressure replenishment when pressure is reduced to the low-pressure threshold.

4. Valve Closing Control

The potential energy of the counterweight drives staged valve closing:

Fast closing stage: Cuts off 70% of the water flow.

Slow closing stage: Remaining 30% slowly closes. Two-stage buffering eliminates water hammer.

5. Emergency Operation

Manual pump operation enables no-power start of the hydraulic control check butterfly valve. Opening the shut-off valve forces the counterweight to close the hydraulic control check butterfly valve.

Purpose

The hydraulic control check butterfly valve is designed for installation at the pump outlet in water-medium pipelines, functioning as both a shut-off valve and a check valve. Its closing time and speed are adjustable to eliminate or reduce water hammer effects and prevent backflow of the working medium.

Features and Advantages

1. The hydraulic control check butterfly valve is hydraulically actuated and closed by the potential energy of the counterweight, providing excellent and reliable operating performance.

2. Installed downstream of the pump, the hydraulic control check butterfly valve can be used as a gate/butterfly valve or a check valve. Its flow resistance coefficient is only 30% of that of the aforementioned valves, significantly saving energy.

3. The counterweight is equipped with a locking device. When the hydraulic control check butterfly valve reaches the specified position, the counterweight arm should be locked by a locking pin to prevent the counterweight from falling back and closing the valve.

4. The hydraulic actuator is equipped with an accumulator to store pressurized oil for pressure compensation in the event of leakage.
