High Tensile Strength Screwed UNS S32760 Super Duplex Flanges
  • High Tensile Strength Screwed UNS S32760 Super Duplex FlangesHigh Tensile Strength Screwed UNS S32760 Super Duplex Flanges

High Tensile Strength Screwed UNS S32760 Super Duplex Flanges

Dafugui manufactures High Tensile Strength Screwed UNS S32760 Super Duplex Flanges using solid-forged F55 alloy (ASTM A182 F55 / UNS S32760 / 1.4501). Designed for industrial piping systems, pressure equipment and compact process skids, these CNC-machined threaded flanges combine high mechanical strength with precision NPT/BSPT thread engagement.
    Engineering Material · UNS S32760 / F55

    For industrial skids where space and weight are key parameters, conventional stainless steel flanges often require larger wall dimensions. Dafugui's High Tensile Strength Screwed UNS S32760 Super Duplex Flanges address this by utilizing the high mechanical properties of solid-forged F55 alloy. Precision CNC-machined across pressure classes up to Class 2500#, these compact threaded connectors support mechanical loads and high internal fluid pressures.

    Source High Tensile Strength Screwed UNS S32760 Super Duplex Flanges for High-Pressure Projects

    Dafugui supplies high tensile strength screwed UNS S32760 super duplex flanges for industrial piping systems, pressure equipment and compact process skids. Manufactured from solid-forged F55 alloy and precision CNC-machined, these threaded flanges are designed for applications requiring high mechanical strength, reliable thread engagement and pressure containment.

    For buyers comparing super duplex steel flanges or sourcing stainless steel threaded flanges, the material grade, thread configuration, pressure class and dimensional requirements should be confirmed together before ordering.

    Material Grade UNS S32760 / F55
    Minimum Yield Strength ≥ 550 MPa
    Pressure Class Up to Class 2500#

    Mechanical Strength and Pressure-Load Performance

    High Yield & Tensile Properties: UNS S32760 achieves a minimum tensile strength of 750–1000 MPa and yield strength ≥ 550 MPa. High Tensile Strength Screwed UNS S32760 Super Duplex Flanges supports compact flange designs capable of resisting axial pipe loads and dynamic pressure surges.

    High-Pressure Thread Engagement: Precision-machined NPT/BSPT threads distribute engagement stresses evenly, facilitating fluid containment across Class 600# to Class 2500# applications.

    Weight Optimization: High mechanical strength allows engineers to optimize pipe wall thickness and reduce overall skid component weight.

    Material Grade, Dimensions and Flange Specifications

    The following specifications are based on the supplied product information. Buyers should confirm the required standard, nominal size, pressure class and facing geometry against the actual piping design and project drawings before placing a bulk order.

    Technical Specification Reference
    Manufacturing Standards ANSI/ASME B16.5, ASME B16.47, EN 1092-1, DIN 2566
    Material Grade ASTM A182 F55 / UNS S32760 / 1.4501
    Size Range 1/8″ NB to 24″ NB (DN10 to DN600)
    Pressure Class Class 150#, 300#, 600#, 900#, 1500#, 2500# / PN6–PN100
    Facing Geometries RF (Raised Face), FF (Flat Face), RTJ (Ring Type Joint)

    Inspection Procedures and Mechanical Quality Control

    Quality verification focuses on the mechanical properties of the forged material, the dimensional accuracy of threaded connections and the condition of machined sealing surfaces.

    • Tensile & Hardness Testing: Sampled from each heat lot and tested per ASTM A370 to verify yield, tensile strength, and Brinell hardness (≤ 270 HBW).
    • Optical Thread Profile Inspection: Thread pitch, angle, and depth audited using optical comparators and thread plug gauges.
    • Liquid Penetrant Testing (PT): High Tensile Strength Screwed UNS S32760 Super Duplex Flanges applied to 100% of machined seating surfaces to ensure freedom from surface defects.

    Manufacturing Facility and Export Preparation

    Factory-Direct Manufacturing Capability

    Direct Manufacturing Value: Operating a 5,000 m² facility with CNC lathes, automated equipment, and specialized workshops, Dafugui offers direct manufacturer pricing and order tracking.

    Export Protective Packaging: Products receive anti-rust surface protection, VCI plastic sealing, and protective end covers before packing in heat-treated ISPM 15 wooden cases.

    Zhejiang Dafugui S32760 Flanges Details

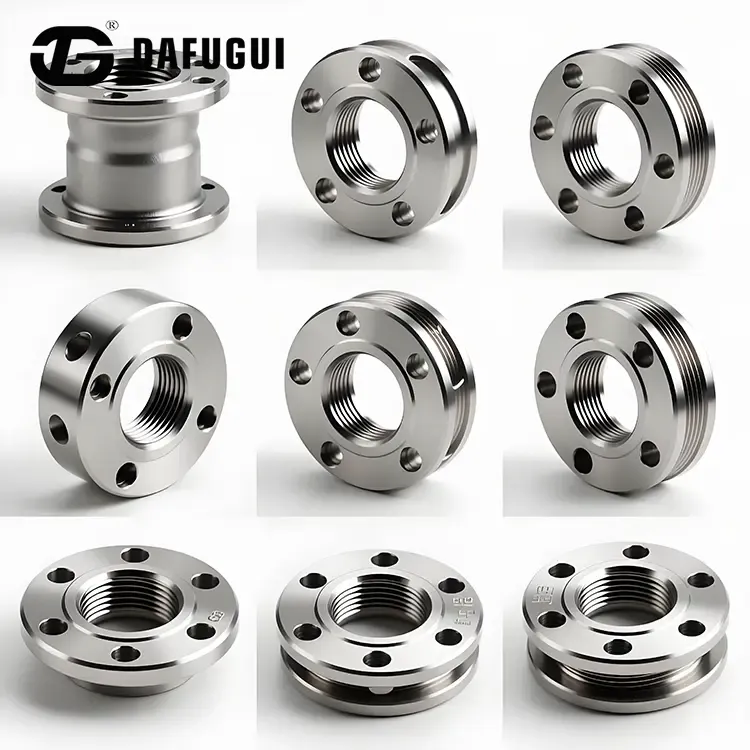

    S32760 Super Duplex Steel Threaded Flanges
    S32760 super duplex steel threaded flange details

    Zhejiang Dafugui S32760 Flanges Process Flow

    S32760 Super Duplex Steel Threaded Flanges Manufacturing Process Flow
    Manufacturing process flow for S32760 super duplex steel threaded flanges

    MOQ, Delivery Time and Quality Documentation

    For procurement planning, Dafugui provides the following commercial terms in its supplied product information. Buyers can submit drawings, quantity requirements and technical specifications to confirm the applicable production arrangement.

    Minimum Order Quantity 1 Piece
    Standard Delivery Lead Time 15–30 Days
    Custom Engineered Dimensions 35–45 Days
    Quality Warranty 12 Months

    Warranty: 12 Months quality warranty covering manufacturing defects.

    Traceability Package: EN 10204 3.1 MTC, PMI spectrum reports, and dimensional inspection records.

    Technical Questions About UNS S32760 Screwed Flanges

    What are the upper temperature guidelines for high-tensile UNS S32760 screwed flanges?

    High Tensile Strength Screwed UNS S32760 Super Duplex Flanges perform reliably within temperature ranges from -45°C up to 260°C (-49°F to 500°F). Beyond 260°C, microstructural phase changes or differential thermal expansion may affect joint tightness.

    How does Dafugui maintain dimensional tolerances across large orders?

    All turning, facing, and internal threading operations are performed on multi-axis CNC lathes using calibrated tooling programs.

    Can high-tensile threaded flanges be re-used after piping maintenance?

    Yes, provided thread profiles remain free of physical damage, S32760 screwed flanges can be unthreaded, cleaned, and re-assembled with fresh thread compound during routine maintenance.

    Project Sourcing · Factory Direct

    Request a Quote for UNS S32760 Super Duplex Flanges

    Send Dafugui your required flange size, pressure class, material grade, thread specification and order quantity. Our team can review your project requirements and provide the relevant technical and commercial details for your sourcing evaluation.
